Divide::ShaderBuffer Class Reference

#include <ShaderBuffer.h>

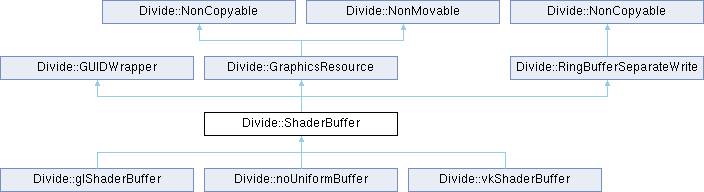

Inheritance diagram for Divide::ShaderBuffer:

Public Member Functions
	ShaderBuffer (GFXDevice &context, const ShaderBufferDescriptor &descriptor)
void	readData (BufferRange range, std::pair< bufferPtr, size_t > outData)
void	readBytes (BufferRange range, std::pair< bufferPtr, size_t > outData)
BufferLock	clearData (BufferRange range)
BufferLock	clearBytes (BufferRange range)
BufferLock	writeData (BufferRange range, const bufferPtr data)
BufferLock	writeBytes (BufferRange range, const bufferPtr data)
BufferUpdateUsage	getUpdateUsage () const noexcept
BufferUpdateFrequency	getUpdateFrequency () const noexcept
FORCE_INLINE I32	getStartIndex (const bool read) const noexcept
FORCE_INLINE size_t	getStartOffset (const bool read) const noexcept
FORCE_INLINE U32	getPrimitiveCount () const noexcept
FORCE_INLINE size_t	getPrimitiveSize () const noexcept
FORCE_INLINE BufferUsageType	getUsage () const noexcept
FORCE_INLINE BufferLock	writeData (const bufferPtr data)
FORCE_INLINE BufferLock	clearData ()
virtual LockableBuffer *	getBufferImpl ()=0
	PROPERTY_R (size_t, alignedBufferSize, 0u)
	PROPERTY_R (size_t, alignmentRequirement, sizeof(U32))
	PROPERTY_R (string, name)
	PROPERTY_R (U64, lastWrittenFrame, 0u)
	PROPERTY_R (U64, lastReadFrame, 0u)
Public Member Functions inherited from Divide::GUIDWrapper
	GUIDWrapper () noexcept
	GUIDWrapper (const GUIDWrapper &old) noexcept
	GUIDWrapper (GUIDWrapper &&old) noexcept
virtual	~GUIDWrapper ()=default
FORCE_INLINE I64	getGUID () const noexcept
GUIDWrapper &	operator= (const GUIDWrapper &old)=delete
GUIDWrapper &	operator= (GUIDWrapper &&other)=delete
Public Member Functions inherited from Divide::GraphicsResource
virtual	~GraphicsResource ()
GFXDevice &	context () const noexcept
U64	nameHash () const noexcept
Public Member Functions inherited from Divide::NonCopyable
	NonCopyable (const NonCopyable &)=delete
NonCopyable &	operator= (const NonCopyable &)=delete
	NonCopyable (NonCopyable &&)=default
NonCopyable &	operator= (NonCopyable &&)=default
Public Member Functions inherited from Divide::NonMovable
	NonMovable (NonMovable &&)=delete
NonMovable &	operator= (NonMovable &&)=delete
	NonMovable (const NonMovable &)=default
NonMovable &	operator= (const NonMovable &)=default
Public Member Functions inherited from Divide::RingBufferSeparateWrite
	RingBufferSeparateWrite (U16 queueLength, bool separateReadWrite, bool writeAhead=true) noexcept
virtual	~RingBufferSeparateWrite ()=default
virtual void	resize (U16 queueLength)
U16	queueLength () const noexcept
I32	queueWriteIndex () const noexcept
I32	queueReadIndex () const noexcept
I32	incQueue () noexcept
I32	decQueue () noexcept

Static Public Member Functions
static size_t	AlignmentRequirement (BufferUsageType usage) noexcept
Static Public Member Functions inherited from Divide::GUIDWrapper
static I64	generateGUID () noexcept

Protected Member Functions
virtual void	readBytesInternal (BufferRange range, std::pair< bufferPtr, size_t > outData)=0
virtual BufferLock	writeBytesInternal (BufferRange range, const bufferPtr data)=0
Protected Member Functions inherited from Divide::GraphicsResource
	GraphicsResource (GFXDevice &context, Type type, I64 GUID, U64 nameHash)
Protected Member Functions inherited from Divide::NonCopyable
	NonCopyable ()=default
	~NonCopyable ()=default
Protected Member Functions inherited from Divide::NonMovable
	NonMovable ()=default
	~NonMovable ()=default

Protected Attributes
BufferParams	_params
size_t	_maxSize { 0u }
U64	_lastWriteFrameNumber { 0u }
Protected Attributes inherited from Divide::GUIDWrapper
const I64	_guid
Protected Attributes inherited from Divide::GraphicsResource
GFXDevice &	_context

Friends
class	Attorney::ShaderBufferBind

Additional Inherited Members
Public Types inherited from Divide::GraphicsResource
enum class	Type : U8 {   RENDER_TARGET , SHADER_BUFFER , BUFFER , SHADER ,   SHADER_PROGRAM , TEXTURE , COUNT }

Detailed Description

Definition at line 48 of file ShaderBuffer.h.

Constructor & Destructor Documentation

ShaderBuffer()

Divide::ShaderBuffer::ShaderBuffer ( GFXDevice &  context, const ShaderBufferDescriptor &  descriptor  )

explicit

Definition at line 25 of file ShaderBuffer.cpp.

Member Function Documentation

AlignmentRequirement()

size_t Divide::ShaderBuffer::AlignmentRequirement ( BufferUsageType  usage )

staticnoexcept

Definition at line 8 of file ShaderBuffer.cpp.

clearBytes()

BufferLock Divide::ShaderBuffer::clearBytes

(

BufferRange

range

)

Definition at line 77 of file ShaderBuffer.cpp.

clearData() [1/2]

FORCE_INLINE BufferLock Divide::ShaderBuffer::clearData ( )

inline

Definition at line 75 of file ShaderBuffer.h.

clearData() [2/2]

BufferLock Divide::ShaderBuffer::clearData

(

BufferRange

range

)

Definition at line 38 of file ShaderBuffer.cpp.

getBufferImpl()

virtual LockableBuffer * Divide::ShaderBuffer::getBufferImpl ( )

pure virtual

Implemented in Divide::noUniformBuffer, Divide::glShaderBuffer, and Divide::vkShaderBuffer.

getPrimitiveCount()

FORCE_INLINE U32 Divide::ShaderBuffer::getPrimitiveCount ( ) const

inlinenoexcept

Definition at line 70 of file ShaderBuffer.h.

getPrimitiveSize()

FORCE_INLINE size_t Divide::ShaderBuffer::getPrimitiveSize ( ) const

inlinenoexcept

Definition at line 71 of file ShaderBuffer.h.

getStartIndex()

FORCE_INLINE I32 Divide::ShaderBuffer::getStartIndex ( const bool  read ) const

inlinenoexcept

Definition at line 68 of file ShaderBuffer.h.

getStartOffset()

FORCE_INLINE size_t Divide::ShaderBuffer::getStartOffset ( const bool  read ) const

inlinenoexcept

Definition at line 69 of file ShaderBuffer.h.

getUpdateFrequency()

BufferUpdateFrequency Divide::ShaderBuffer::getUpdateFrequency ( ) const

noexcept

Definition at line 99 of file ShaderBuffer.cpp.

getUpdateUsage()

BufferUpdateUsage Divide::ShaderBuffer::getUpdateUsage ( ) const

noexcept

Definition at line 94 of file ShaderBuffer.cpp.

getUsage()

FORCE_INLINE BufferUsageType Divide::ShaderBuffer::getUsage ( ) const

inlinenoexcept

Definition at line 72 of file ShaderBuffer.h.

PROPERTY_R() [1/5]

Divide::ShaderBuffer::PROPERTY_R	(	size_t	,
		alignedBufferSize	,
		0u
	)

PROPERTY_R() [2/5]

Divide::ShaderBuffer::PROPERTY_R	(	size_t	,
		alignmentRequirement	,
		sizeof(U32)
	)

PROPERTY_R() [3/5]

Divide::ShaderBuffer::PROPERTY_R	(	string	,
		name
	)

PROPERTY_R() [4/5]

Divide::ShaderBuffer::PROPERTY_R	(	U64	,
		lastReadFrame	,
		0u
	)

PROPERTY_R() [5/5]

Divide::ShaderBuffer::PROPERTY_R	(	U64	,
		lastWrittenFrame	,
		0u
	)

readBytes()

void Divide::ShaderBuffer::readBytes	(	BufferRange	range,
		std::pair< bufferPtr, size_t >	outData
	)

Definition at line 64 of file ShaderBuffer.cpp.

readBytesInternal()

virtual void Divide::ShaderBuffer::readBytesInternal ( BufferRange  range, std::pair< bufferPtr, size_t >  outData  )

protectedpure virtual

Implemented in Divide::noUniformBuffer, Divide::vkShaderBuffer, and Divide::glShaderBuffer.

readData()

void Divide::ShaderBuffer::readData	(	BufferRange	range,
		std::pair< bufferPtr, size_t >	outData
	)

Definition at line 55 of file ShaderBuffer.cpp.

writeBytes()

BufferLock Divide::ShaderBuffer::writeBytes	(	BufferRange	range,
		const bufferPtr	data
	)

Definition at line 81 of file ShaderBuffer.cpp.

writeBytesInternal()

virtual BufferLock Divide::ShaderBuffer::writeBytesInternal ( BufferRange  range, const bufferPtr  data  )

protectedpure virtual

Implemented in Divide::noUniformBuffer, Divide::vkShaderBuffer, and Divide::glShaderBuffer.

writeData() [1/2]

BufferLock Divide::ShaderBuffer::writeData	(	BufferRange	range,
		const bufferPtr	data
	)

Definition at line 46 of file ShaderBuffer.cpp.

writeData() [2/2]

FORCE_INLINE BufferLock Divide::ShaderBuffer::writeData ( const bufferPtr  data )

inline

Definition at line 74 of file ShaderBuffer.h.

Friends And Related Function Documentation

Attorney::ShaderBufferBind

friend class Attorney::ShaderBufferBind

friend

Definition at line 53 of file ShaderBuffer.h.

Member Data Documentation

_lastWriteFrameNumber

U64 Divide::ShaderBuffer::_lastWriteFrameNumber { 0u }

protected

Definition at line 94 of file ShaderBuffer.h.

_maxSize

size_t Divide::ShaderBuffer::_maxSize { 0u }

protected

Definition at line 93 of file ShaderBuffer.h.

_params

BufferParams Divide::ShaderBuffer::_params

protected

Definition at line 92 of file ShaderBuffer.h.

---

The documentation for this class was generated from the following files:

• G:/Divide-Framework/Source/Platform/Video/Buffers/ShaderBuffer/Headers/ShaderBuffer.h
• G:/Divide-Framework/Source/Platform/Video/Buffers/ShaderBuffer/ShaderBuffer.cpp
